Features
     Specially designed electrode and packaging process
     Excellent hot characteristic
     Low excursion of wavelength and output power

  Applications
     Laser marking, laser cutting and other industry applications
     Laser system for medical
     Defense

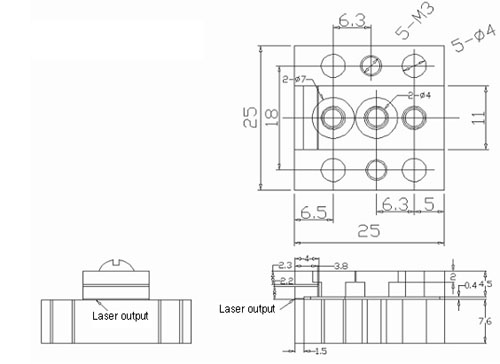

  Package Dimensions (Unit:mm)
  Specifications
Type NRS-C820CS NRS-C840CS NRS-C920CS NRS-Q8100CS Unit
Optical (Tc=25¡æ)
CW Output Power Po
20
40
20
100
W
Bar Width
1
1
1
1
mm
Bar Length L
10
10
10
10
mm
Center Wavelength ¦Ëc
808
808
980
808
nm
Center Wavelength Tolerance
¡À5
¡À5
¡À10
¡À5
nm
Spectral Width(FWHM) ¦¤¦Ë
¡Ü3
¡Ü3
¡Ü3
¡Ü3
nm
Emitting Dimensions
500
500
500
160
µm
Number of Emitter
19
19
19
60
-
Wavelength Temp. Coefficient
0.3
0.3
0.3
0.3
nm/¡æ
Beam Divergence(FWHM) ¦È¡Î¡Á¦È¡Í
10¡Á38
10¡Á38
10¡Á40
10¡Á40
degrees
Electrical (Tc=25¡æ)
Slope Efficiency Es
¡Ý 1
¡Ý 1
¡Ý 0.8
¡Ý 1
W/A
Threshold Current Ith
¡Ü5
¡Ü8
¡Ü10
¡Ü25
A
Operation Current Io
¡Ü25
¡Ü45
¡Ü30
¡Ü115
A
Operation Voltage Vf
<2
<2
<2
<2
V
Absolute Maximum Ratings
Reverse Voltage Vf
2.5
2.5
2.5
2.5
V
Operation Temp. To
10¡«40
10¡«40
10¡«40
10¡«40
¡æ
Storage Temp. Tstg
-20¡«60
-20¡«60
-20¡«60
-20¡«60
¡æ
    Notes: Newraysing may make changes to specifications and product descriptions at any time without notice.

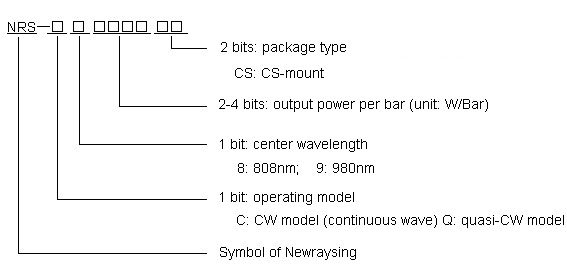

  Ordering Information
