Features
     High efficiency and reliability while small size
     Completely moisture proof, salt-fog resistant and mildew proof
     Mean Time Between Failure: ¡Ý100, 000hrs
     With remote control switch and operating condition real-time monitoring
     With good environment applicability through strict voltage stress and humidity stress test
     Display on board of operating and warning state makes Administration and Maintenance easy
  Specifications
   Input voltage: Single-phase 90Vac¡«364Vac    Remote control enable signal £«5V
   AC frequency: 45Hz¡«65Hz    Remote control signal: 0¡«10V(0¡«30A corresponding)
   Power factor: 0.998(Fully loaded)    Temperature and water flaw protect interface:
   Efficiency: 86.8£¥(Rating input, Fully loaded)        Operating when short-pass and turn-off when open
   Output current rage: 0A¡«30A    Cooling type: Air cooling
   Output voltage rage: 0V¡«30V    Dielectric strength:
   Voltage adjustment rate£º¡Ü¡À1£¥        Input£­Shell 2200Vdc£¨25¡æ£©
   Stabilization: ¡Ü¡À0.1£¥        Input£­Output 2200Vdc£¨25¡æ£©
   Output voltage ripple: Vp£­p ¡Ü120mV        Output£­Shell 710Vdc£¨25¡æ£©
   Protect characteristics: AC abnormity, output overcurrent and over-temperature protection    Dimension: 483mm¡Á89mm¡Á207mm
   Load Regulation: ¡Ü¡À1£¥    Operating temperature: -10¡æ~+50¡æ
   Local control: Local control switch    Operating air pressure: 70kPa¡«106KPa
Notes: Newraysing may make changes to specifications and product descriptions at any time without notice. Other output power are available, please contact with us.
  Warning
        1. Please set and maintain the module following User Manual.
        2. Do not use it under Severe Environment for long term, such as too high or too low temperature and too high altitude.
        3. Please inspect the environment first when failure. Ensure whether the front board can be turn on, whether the AC input is work or whether the environment temperature is too high.
        4. Please contact the supplier when the failure can not be eliminated.

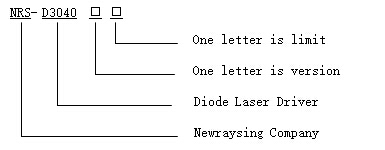

  Ordering Information
