| Features |
 |
 Small size, compact structure, aesthetic appearance |
| Water-cooled, easy to use |
| High stability and reliability |
| Proprietary driver for alternative |
| Applications |
| Pump laser for DPSSL |
| Laser marking, laser cutting and other industry applications |
| Laser system for medical |
| Defense |
|
| Package Dimensions (Unit: mm) |
 |
 |
|
| Specifications |
|
| Type |
NRS-S200C |
Units |
| Optical (Tc=25¡æ) |
| Peak Wave ¦Ëc |
1064 |
nm |
|
| Output Power Po |
200 |
W |
|
| YAG Center Height |
40 |
mm |
|
| YAG Size |
¦µ5¡Á160 |
mm |
|
| YAG Terminal |
Flat/AR |
- |
| Electrical (Tc=25¡æ) |
| Threshold Current Ith |
<8 |
A |
|
| Operation Current Io |
<35 |
A |
|
| Structural (Tc=25¡æ) |
| Size(L*W*H) |
145.5¡Á92.4¡Á71 |
mm3 |
|
| Weight |
<2 |
Kg |
|
| Absolute Maximum Ratings |
| Operation Temp. To |
10¡«30 |
¡æ |
|
| Storage Temp. Tstg |
-20¡«70 |
¡æ |
|
| Cooling style |
Pure Water |
- |
|
| Cooling Water Temp. |
20¡«25 |
¡æ |
|
| Cooling Water Flow |
>9 |
L/min |
|
| Cooling Water Pressure |
|
PSI |
|
| Notes: Newraysing may make changes to specifications and product descriptions at any time without notice.
Other output power are available, please contact with us.
|
|
|

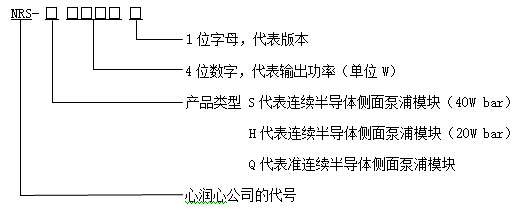

| Ordering Information |
 |
|
 |
|
|
|
|
