Features |
 Specially designed electrode and packaging process |
| High efficient water-cool channel system |
| Low excursion of wavelength and output power |
| Applications |
| Laser marking, laser cutting and other industry applications |
| Laser system for medical |
| Defense |
| |
|
| Package Dimensions (Unit: mm) |
 |
 |
|
| Specifications |
|
| Type |
NRS-C820L3 |
NRS-C820L4 |
Units |
| Optical (Tc=25¡æ) |
| CW Output Power Po |
60 |
80 |
W |
|
| Bar Array Length L |
31.5 |
42 |
mm |
|
| Center Wavelength ¦Ëc |
808 |
808 |
nm |
|
| Center Wavelength Tolerance |
¡À5 |
¡À5 |
nm |
|
| Spectral Width(FWHM) ¦¤¦Ë |
<4 |
<4 |
nm |
|
| Number of Bar |
3 |
4 |
- |
|
| Wavelength Temp. Coefficient |
0.3 |
0.3 |
nm/¡æ |
|
| Beam Divergence(FWHM) ¦È¡Î¡Á¦È¡Í |
8¡Á40 |
8¡Á40 |
degrees |
| Electrical (Tc=25¡æ) |
| Slope Efficiency Es |
¡Ý 1 |
¡Ý 1 |
W/A |
|
| Threshold Current Ith |
6 |
6 |
A |
|
| Operation Current Io |
25 |
25 |
A |
|
| Operation Voltage Vf |
6 |
8 |
V |
| Absolute Maximum Ratings |
| Reverse Voltage Vf |
2.5 |
2.5 |
V |
|
| Operation Temp. To |
10¡«40 |
10¡«40 |
¡æ |
|
| Storage Temp. Tstg |
-20¡«60 |
-20¡«60 |
¡æ |
|
| Notes: Newraysing may make changes to specifications and product descriptions at any time without notice. |
|
|

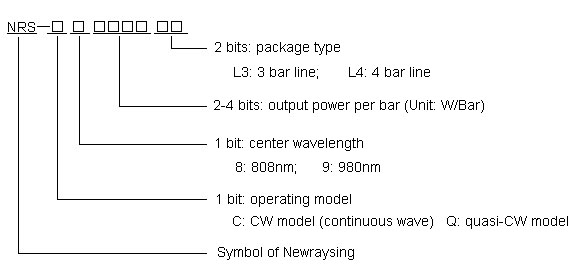

| Ordering Information |
 |
|
 |
|
|
|
|
